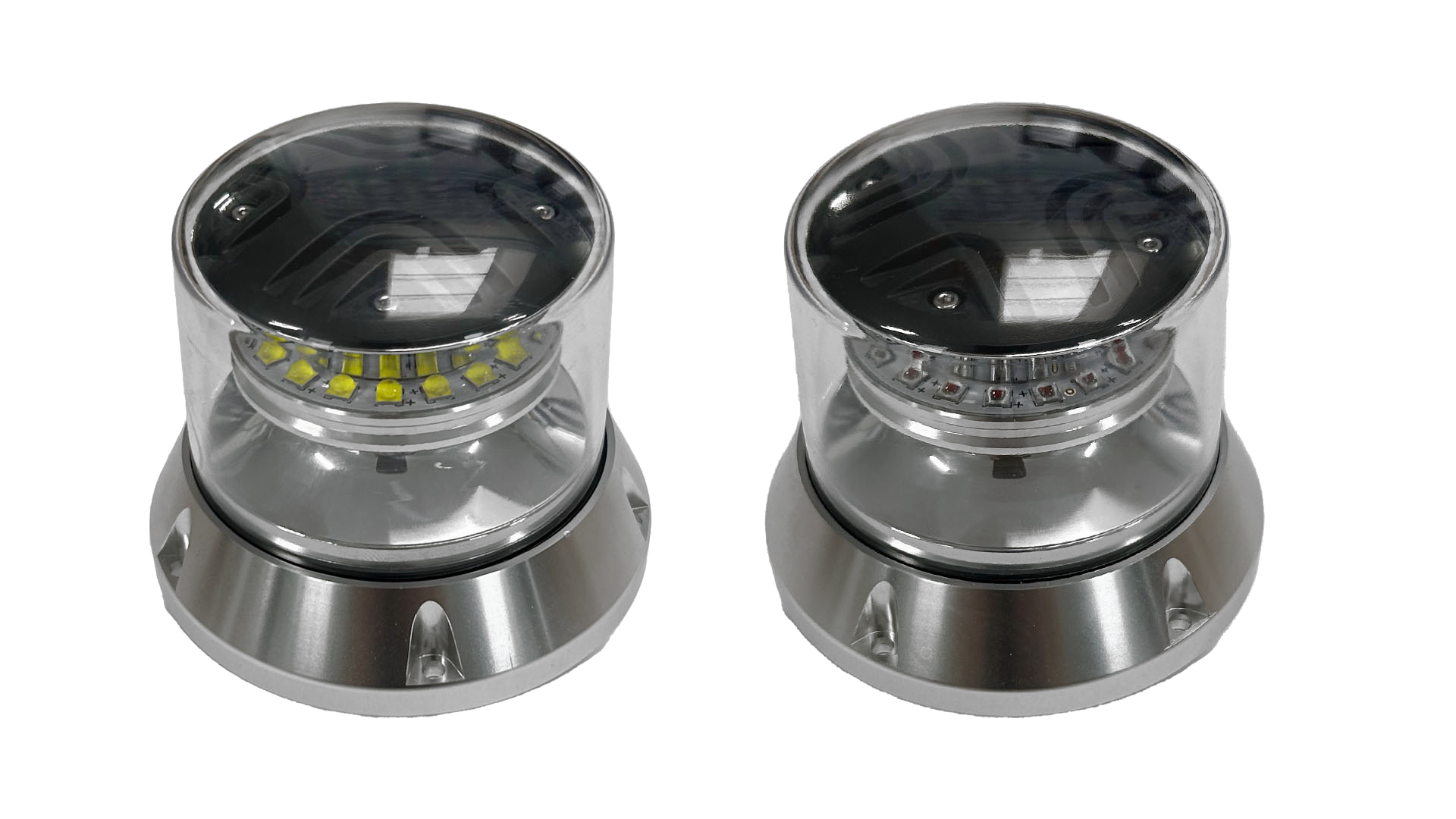

3-in-1 Navigation / Position / Strobe LED light
| Input voltage: | from +9 to +36 VDC |
|---|---|
| Input current: | 2A @14 VDC 1A @28 VDC |
| Input power: | 28W @14 VDC 28W @28 VDC |
| Transient voltage: | 2 seconds +40V |
| Under-voltage lockout: | +9 VDC, not more |
| Over-voltage lockout: | +36 VDC, not less |
| Ambient temperature: | from -55°C to +85°C from -67°F to +185°F |
| Lens / Beam pattern: | Landing light version: 8.6° viewing angle – symmetrical beam Taxi light version: 40° × 9° viewing angle – asymmetrical beam |
| Color and shade: | Cool White |
| Overheat protection: | temperature dependent decrement intensity |
| Weight: | 380g / 0.837 lb |
| Useful life: | not less than 15,000 aircraft flight hours |

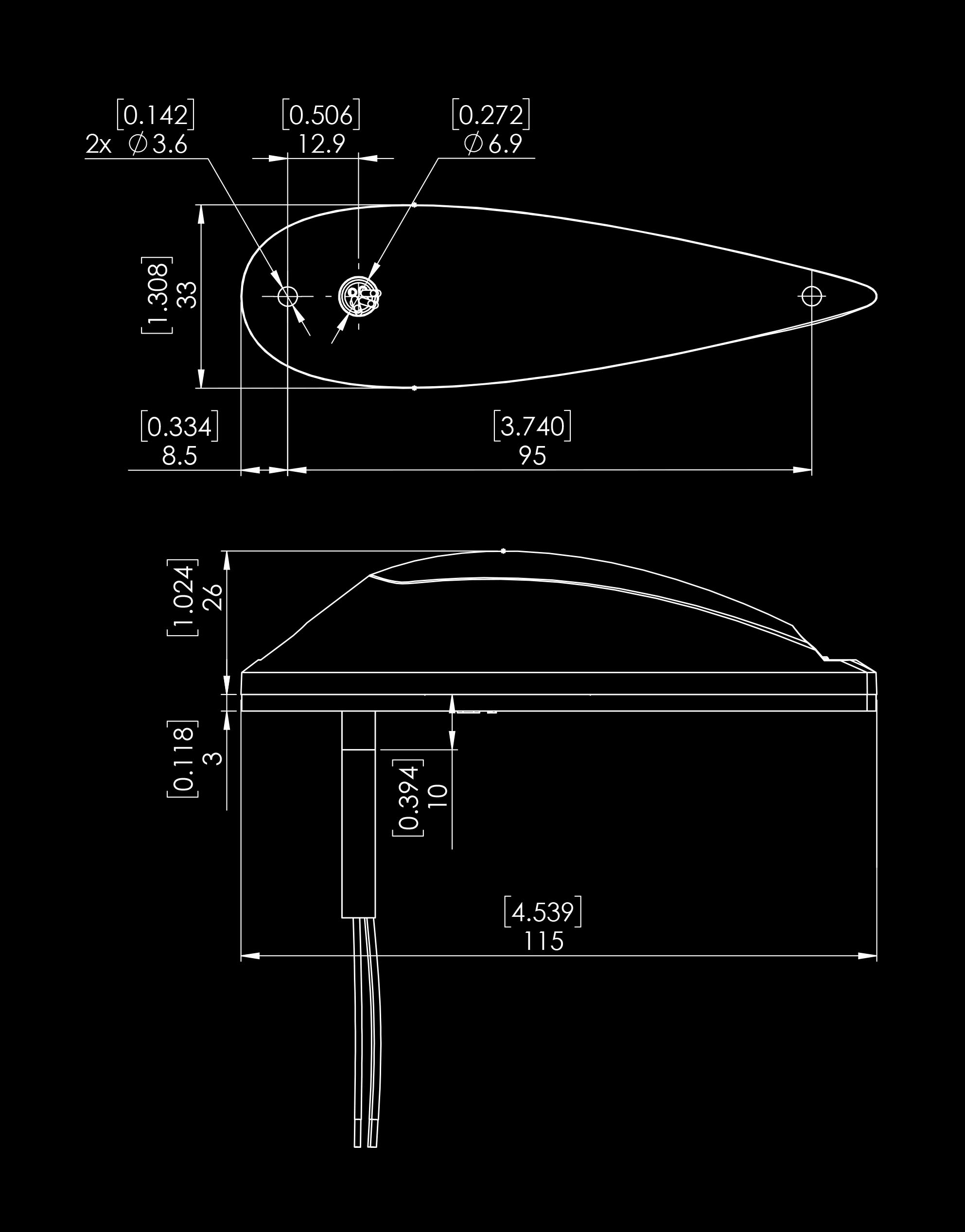

| Dimension: | See drawing |
| Material: | Housing / Heatsink: Aluminum Alloy, natural / black anodizing Lens: Clear PMMA |
